Concrete Batching System-I

Describe:: Concrete batching machine is the sand batching device with loading machine or belt conveying machine feeding, it can batching more than three kinds of material, and use with all kinds of concrete mixers and other measurement device

We are here to help:Easy ways to get the answers you need.

Send E-mail get price

Product Detail
Application
Advantages
Parameters

Descriptions of PLD Series Concrete Batching System:

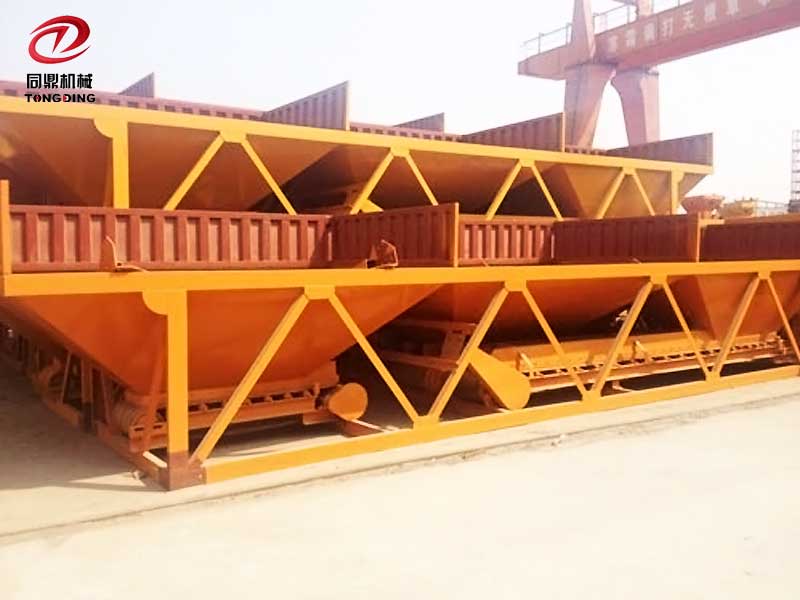

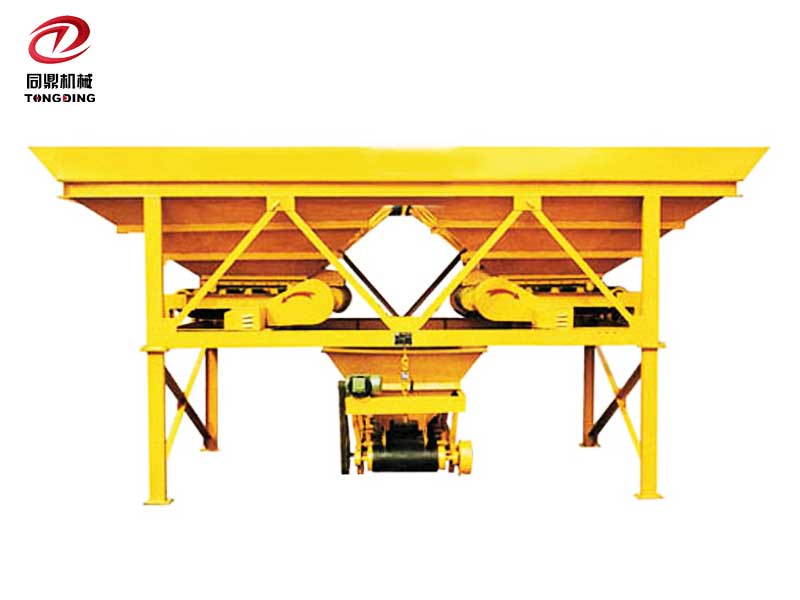

Concrete batching machine is the sand batching device with loading machine or belt conveying machine feeding, it can batching more than three kinds of material, and use with all kinds of concrete mixers and other measurement device, can combination into automatic and semi-automatic concrete mixing plants, the machine can be effective of guarantee mix proportion accuracy of fine sand, middle sand and stones, improve the quality of concrete mix proportion, is the ideal batching machine of various concrete mixing plants.

Features of Concrete Batching System:
1. Weighing system adopts world famous brand sensors to ensure accurate weighing.
2. It can be configured cumulative measuring method and independent measuring method according to the size of concrete mixing plant.
3. PLD series concrete batching machine can independently finish aggregate batching requirements. And it is with high weighing accuracy, high precision, high speed, simple operation and many other

Advantages Of PLD Series Concrete Batching System:
1. Perfect humanization Electrical control system
Siemens PLC or remote control operation system provide you a accredited operation machine.

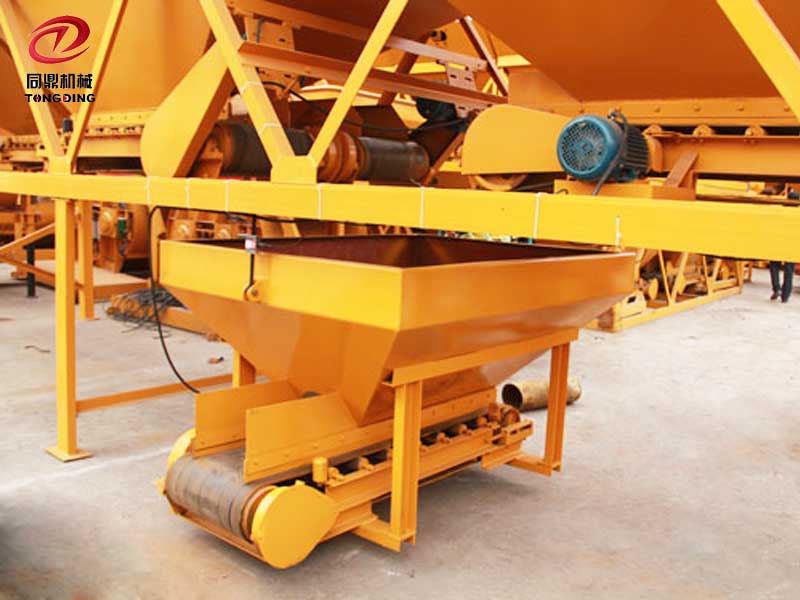

2. Load Cell :
It guarantees the precise of the aggregate and protects the products from transfiguration.
3. Discharging System. Make in China, world Quality, and we can provide you the rubber belt as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;

Parameters of PLD Series Concrete Batching System:

Item	Unit	PLD 800-2	PLD 1200-3	PLD1600-4
Scale hopper volume	Liter	800	1200	1600
Storage hopper volume	m3	2x2	3×2.2	3×2.2
Productivity	m3/h	≥48	≥60	≥80
Batching precision		±2%	±2%	±2%
Max weighting	kg	1500	2000	3000
Aggregate number		2	3	4
Feeding height	mm	3000	3000	3000
General power	kW	3×3	4×3	5×3
Weight	kg	2500	3900	5750
Dimension (LWH)	mm	6400×1600×3000	9600×2000×3200	12900×2000×3200
Division value checking	kg	2.0	2.0	2.0
Optional Structure character	The feeding structure is arranged in line, charging through the belt, and the measuring system is a single sensor and lever.
