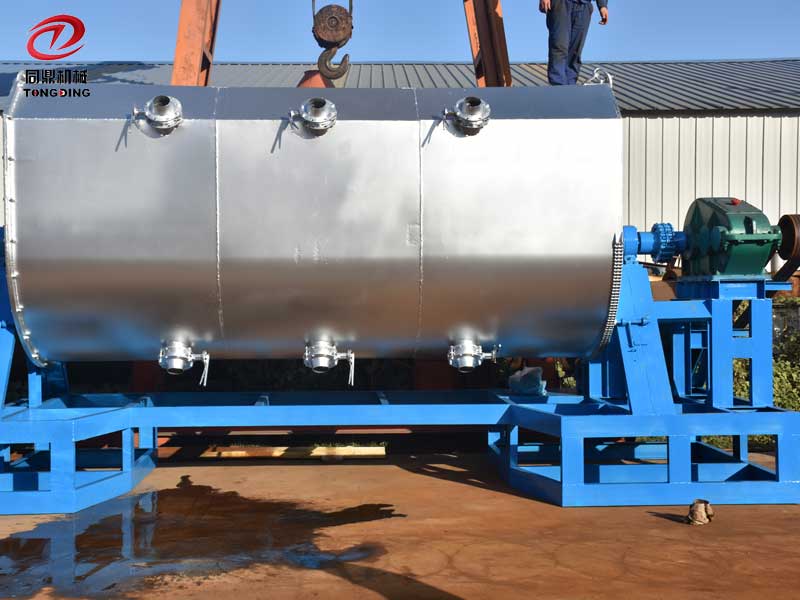

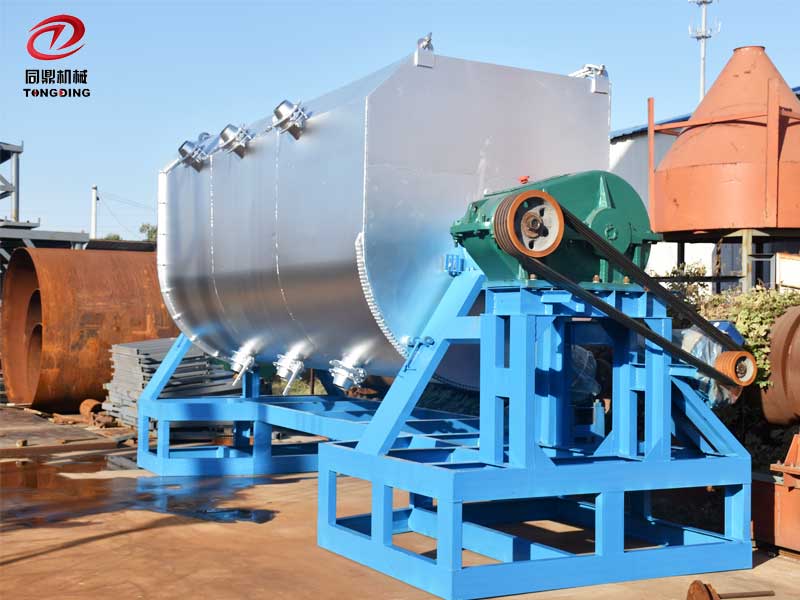

Tilting real-stone paint mixer

Working principle

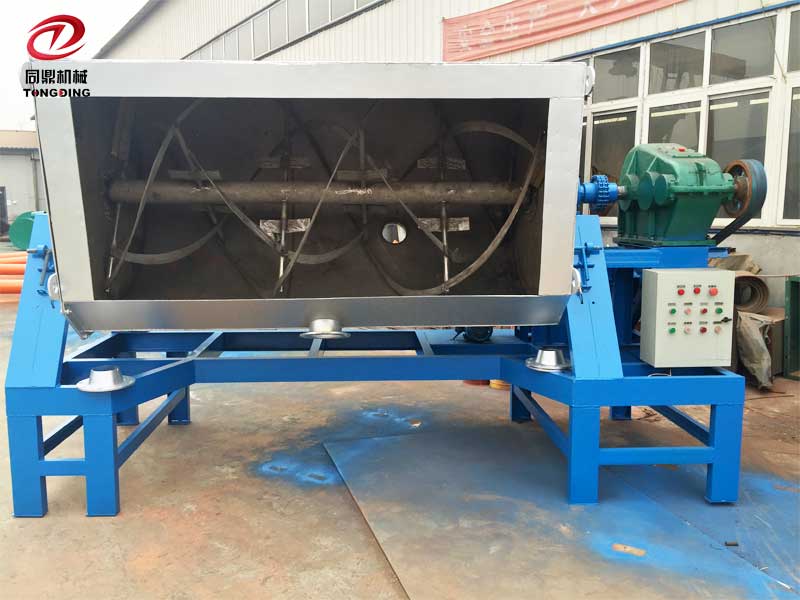

This equipment ‘s appearance design adopt horizontal type, cylinder or U type.the interior design adopt double screws design with double-deck or multiwall screws. That is to say, there are tow or more bands on level main axle, they have same delivery value, but different coil diameter and screw veering. In normal , when main axle are screwing, the one of band convey materials from left to right, the other one convey materials from right to left. So the convection with mixing action occurs in the machine, consequently the material are mixed.

Machine features
1、The equipment will make the material turn by a three-dimensional design. The mixer runs smoothly, reliable quality, low noise, long service life, and easy installation and maintenance, it is a broad-spectrum and multiple equipment.
2、The mixer have high speed and mixing proportion, especially adapt thick and mushy material.
3、In mixed require of different materials, the mixer will use different screw belt structure.
4、The horizontal type also can has dodge door, in order to clean the equipment or load materials.
5、This is a affordable mixer, it is the best combination of the ideal product of the chemical industry, paint, putty, and the paste body humidity material .
6、The mixer suit for small and medium investor, it is one of the more advanced chemical production equipment with less occupied area, save time and effort, run smoothly, and simplicity of operator.

Type	Model	Motorpower（KW)	Reducer model	Tilt Motor（KW）	Tilt reducer	Mixing barrel size	The mixer size	end sealing plate (mm)	Mixer plate (mm)
1T	TD-ZS-W1000	5.5	ZQ250	-----	----	1256*808*954	～2500*1000*1946	6	4
2T	TD-ZS-W2000	11	ZQ350	1.1	WPA60	1686*1008*1154	～3000*1200*2152	6	4
3T	TD-ZS-W3000	11	ZQ350	1.1	WPA60	1883*1100*1300	～3200*1300*2313	8	4
5T	TD-ZS-W5000	18.5	ZQ500	1.5	WPA80	2478*1300*1460	～4000*1500*2420	8	6
10T	TD-ZS-W10000	22	ZQ500	2.2	WPA100	3010*1600*1800	～4500*1800*2770	10	6
20T	TD-ZS-W20000	37	ZQ650	3	WPA120	4516*1900*2150	～6500*2100*3183	16	10
30T	TD-ZS-W30000	45	ZQ750	4	WPA135	4519*2250*2450	～6600*2600*3916	18	12
50T	TD-ZS-W50000	75	ZQ1000	5.5(6級(jí)）	WPA155	6770*2574*2737	～9400*2600*3916	20	12
