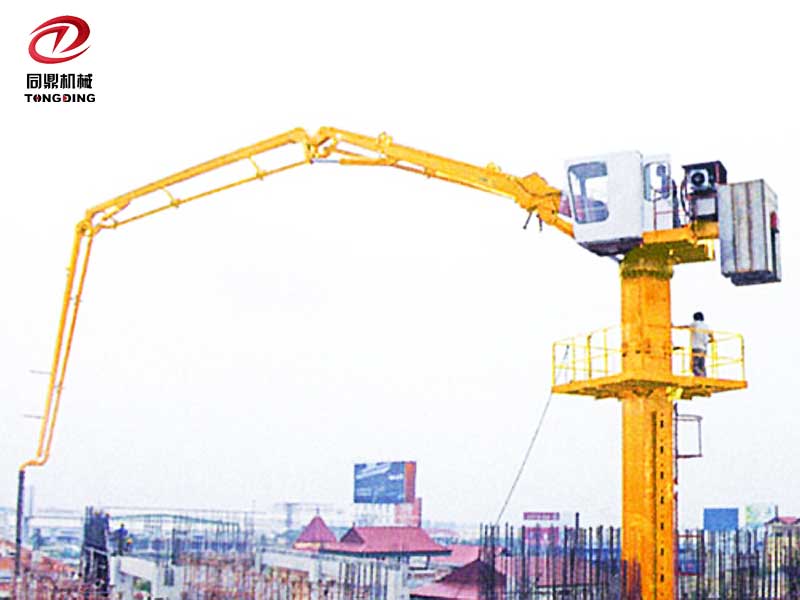

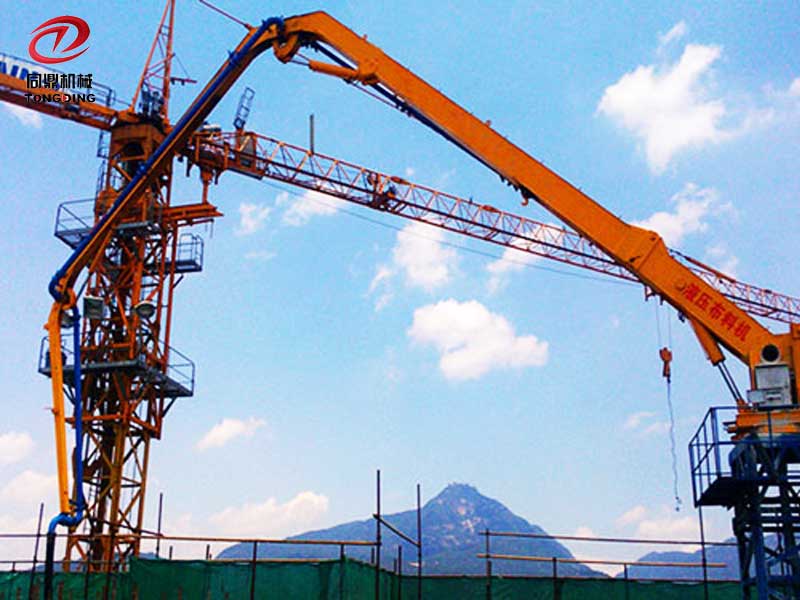

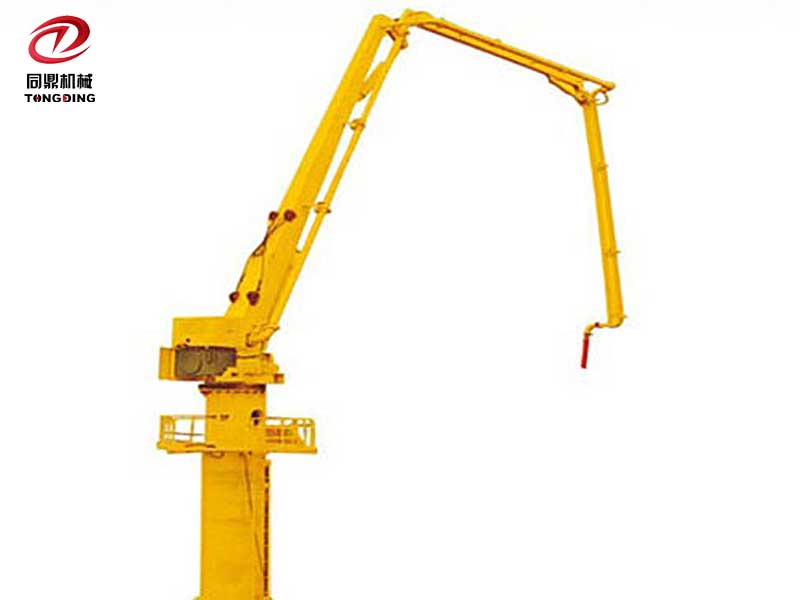

Hydraulic Placing Boom

Description of Hydraulic Placing Boom:
Concrete placing machine, in order to expand the scope of pouring concrete pumping construction mechanization level and developed new products. It is support equipment of concrete pump, expand the scope of the concrete pumping, effective solution to the problem of wall pouring fabric, played an important role to improve construction efficiency, reduce labor intensity.

Features of Hydraulic Placing Boom:
Concrete placing machine, in order to expand the scope of pouring concrete pumping construction mechanization level and developed new products. It is support equipment of concrete pump, expand the scope of the concrete pumping, effective solution to the problem of wall pouring fabric, played an important role to improve construction efficiency, reduce labor intensity.

Parameters of Hydraulic Placing Boom:

Model	TD-HGY18	TD-HGY21	TD-HGY24	TD-HGY28	TD-HGY32
Fabric Arm Length (m)	18	21	24	28	32
Arm End Hose Length (m)	3
Rotation Angle	360°
Elevation Angle	-4~90°
Hydraulic System Power (kw)	5	4	11	11		15
Drive Mode	Full hydraulic
Delivery Pipe Diameter (mm)	125
