1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens TD-PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.

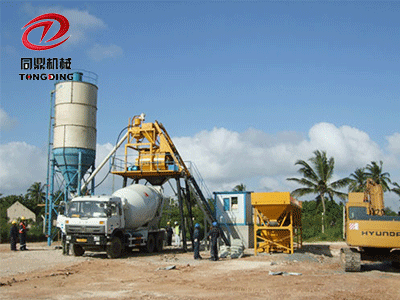

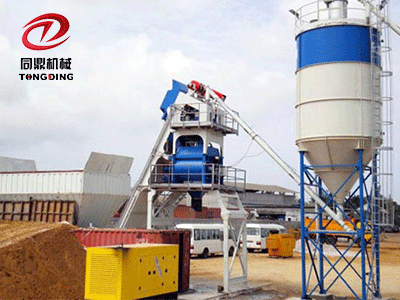

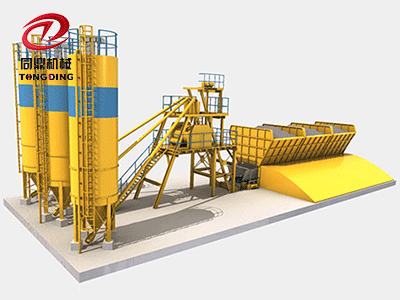

Technical Parameters of TD-HZS50 Concrete Mixing Plant:
Capacity: 50 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 80 KW
Total Weight: 40Ton
Total Dimensions: 18200×10000×19400 mm
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: TD-JS1000
Volume: 1600L
Capacity: 1000L
Mixing blade: 2×8 pcs
Mixing Speed: 25.5 r.min
Mixer Motor: 37kw
Aggregate Size: 60/80 mm
Weight: 9880kg
Dimensions: 4640×2250×2250mm
2. AGGREGATE SYSTEM
2.1 Aggregate batcher:PLD1600
Volume: 4×3.7 m3
Capacity: 80 m3/h
Power: 5×3kw
Weight: 5750 kg
Dimension: 12916×2000×3200mm
2.2 Lifting Hopper: 1 unit
Speed: 0.46m/s
Power of Motor: 11kw
3. CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo: 2units
Capacity: 100t×2=100t
Silo Diameter: Φ3000
3.2 Cement Screw Feeder: 2units
Diameter: Φ219mm
Length: 9m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm

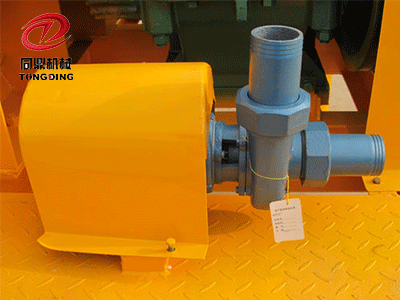

Pump: 3kw
5. WATER SYSTEM
Motor Power: 3 kw
Butterfly Valve: Φ150 mm
Capacity: 80m3/h
6. AIR SYSTEM
Air Compressor: 1unit
Power: 7.5 kw
Pressure: 1.0 Mpa
Air flew: 1.2 m3/min
7. WEIGHING SYSTEM
7.1 Aggregate Weighing: 1unit
Weighing Capacity: 3000kg
Precision: ±1%
7.2 Cement Weighing: 1unit
Weighing Capacity: 600kg
Precision: ±1%
7.3 Water Weighing: 1unit
Weighing Capacity: 250 kg
Precision: ±1%
7.4 Additive Weighing: 1unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM
PLC command and control operation.
Main electrical components: SCHNEIDER or SIMENSE
17’’ colorful computer
Manuel and Auto Control is freely changeable.
