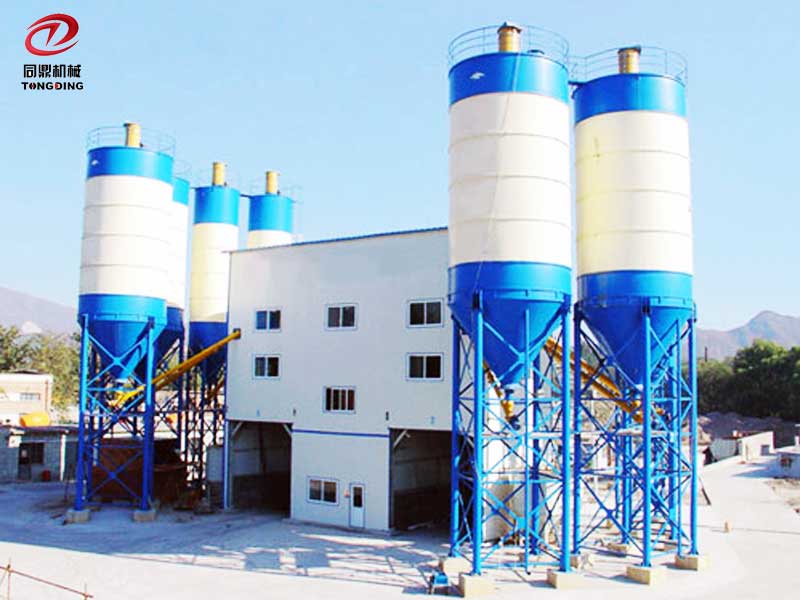

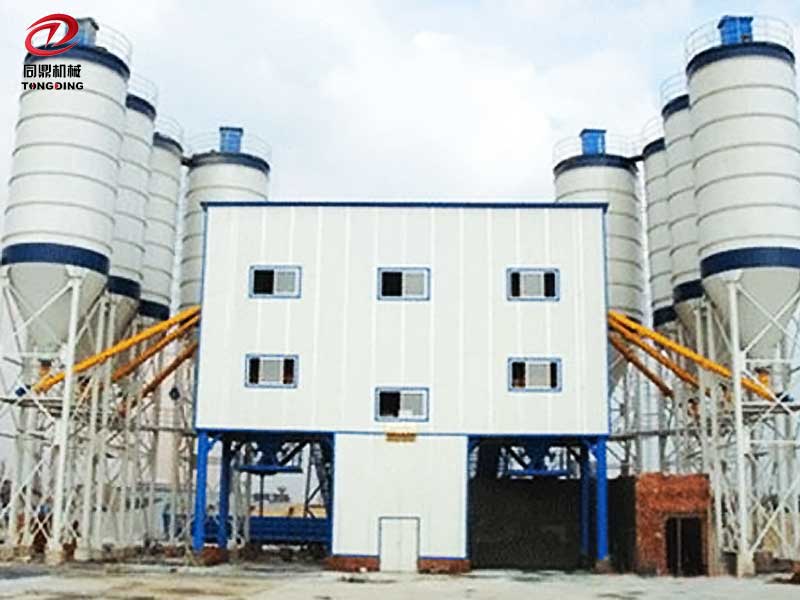

      TD-HZS120 Concrete Mixing Plant

      Describe:
      TD-HZS series of concrete mixing plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard,? as well as earned a perfect reputations i

      We are here to help:Easy ways to get the answers you need.

      Send E-mail get price

      • Product Detail
      • Application
      • Advantages
      • Parameters
      Description of TD-HZS120 Concrete Mixing Plant:
      TD-HZS series of concrete mixing plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard,  as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

      Features of TD- HZS120 Concrete Mixing Plant:
      1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
      2. With its modularization structure, it is easy to transport, install and debug more quickly.
      3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
      4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
      5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
      6. PC+PLC control system ensures the high reliability.
      7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
      8. Human-based intelligent control facilitates the operation greatly.
      9. Structural members are durable, and most electric elements adopt world famous brands.

      Technical Parameters of TD-HZS120 Concrete Mixing Plant
      Capacity: 120 m3/h
      Mixing Time: 60S
      Max Aggregate Size: 60/80 mm
      Discharging Height: 3800 mm
      Total Power:    120 KW
      Total Weight: 80 Ton
      Dimensions: 41600×12700×19400 mm

      1. MIXING SYSTEM
      Twin Shaft Concrete Mixer: TD-JS2000
      Volume: 3200L
      Capacity: 2000L
      Mixing Blade: 2×9 pcs
      Mixing Speed: 23.1 r/min
      Mixer Motor: 2×37 kw
      Weight: 9200kg
      Dimensions: 3810×2480×17100mm
      2. AGGREGATE SYSTEM

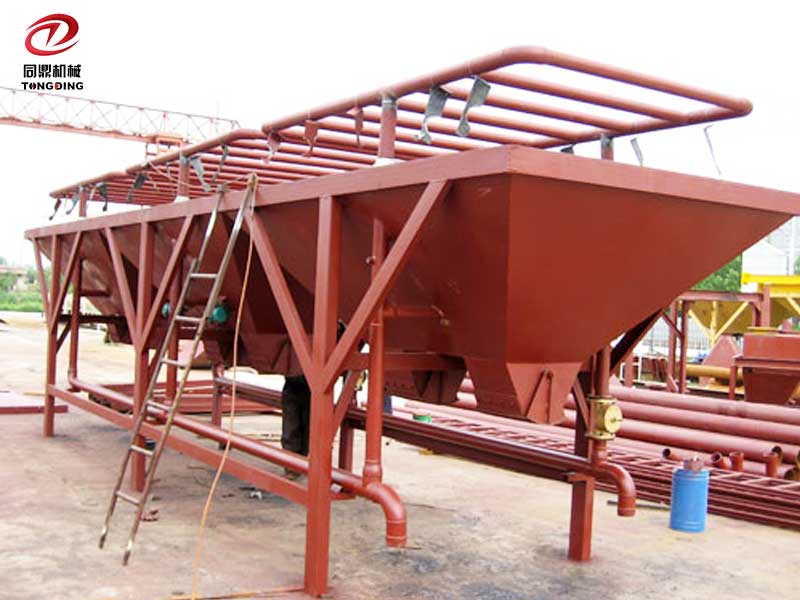

      2.1 Aggregate batcher:  PLD3200
      Volume: 4×15m3
      Capacity: 192m3/h
      Power: 11kw
      Weight: 10200 kg
      Dimension: 12120×3960×4800mm
      2.2 Aggregate belt conveyor: 1 unit
      Belt width: 1000 mm
      Belt speed: 1.6 m/s
      Power of Motor: 22 kw

      3.CEMENT SYSTEM (OPTIONAL)
      3.1 Cement silo: 4 units
      Capacity: 100t×4=400t
      Silo Diameter: Φ3000

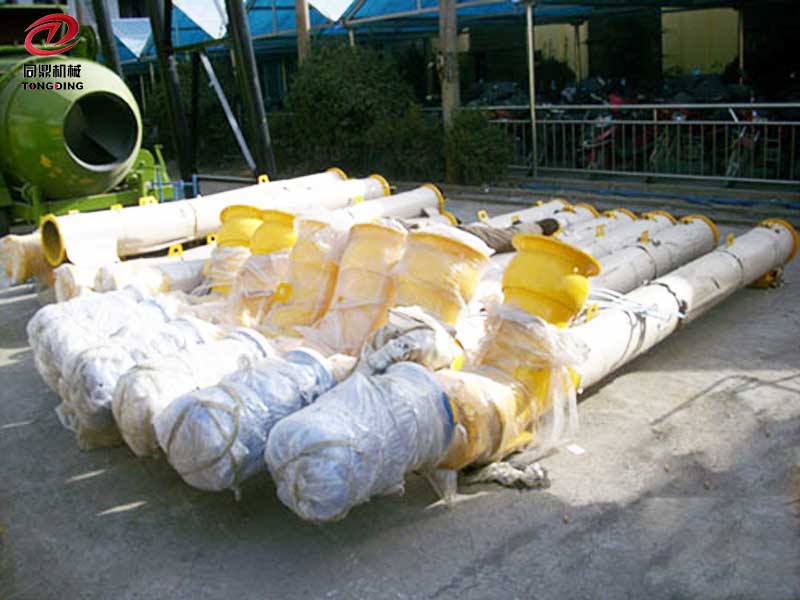

      3.2 Cement Screw Feeder: 4 units
      Diameter: Φ273mm
      Length: 9m

      4. ADDITIVE SYSTEM (OPTIONAL)
      Additive silo Capacity: 1m3
      Pneumatic Valve: Φ50 mm
      Pump: 2×3kw
      5. WATER SYSTEM
      Motor Power: 7.5 kw
      Butterfly Valve: Φ150 mm
      Capacity: 150m3/h
      6. AIR SYSTEM
      Air Compressor: 1unit
      Power: 11 kw
      Pressure: 1.0 Mpa
      Air flew: 1.2m3/min
      7. WEIGHING SYSTEM
      7.1 Aggregate Weighing: 1unit
      Weighing Capacity: 5000kg
      Precision: ±1%
      7.2 Cement Weighing: 1 unit
      Weighing Capacity: 1200kg
      Precision: ±1%
      7.3 Water Weighing: 1 unit
      Weighing Capacity: 400 kg
      Precision: ±1%
      7.4 Additive Weighing: 1 unit
      Weighing Capacity: 50 kg
      Precision: ±1%
      8. CONTROL SYSTEM
      PLC command and control operation.
      Main electrical components: SCHNEIDER or SIMENSE
      17’’ colorful computer
      Manuel and Auto Control is freely changeable .

       Application of TD-HZS120 Concrete Mixing Plant:
      Available for many applications, this stationary concrete batching plant is widely used for water conservancy ,electric power, railroad,  road,  tunnel , the arch of bridge, harbor-wharf and the national defense-project etc..
       1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
      2. With its modularization structure, it is easy to transport, install and debug more quickly.
      3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
      4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
      5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
      6. PC+PLC control system ensures the high reliability.
      7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
      8. Human-based intelligent control facilitates the operation greatly.
      9. Structural members are durable, and most electric elements adopt world famous brands.

       1. MIXING SYSTEM
      Twin Shaft Concrete Mixer: TD-JS2000
      Volume: 3200L
      Capacity: 2000L
      Mixing Blade: 2×9 pcs
      Mixing Speed: 23.1 r/min
      Mixer Motor: 2×37 kw
      Weight: 9200kg
      Dimensions: 3810×2480×17100mm
      2. AGGREGATE SYSTEM
      2.1 Aggregate batcher:  PLD3200
      Volume: 4×15m3
      Capacity: 192m3/h
      Power: 11kw
      Weight: 10200 kg
      Dimension: 12120×3960×4800mm
      2.2 Aggregate belt conveyor: 1 unit
      Belt width: 1000 mm
      Belt speed: 1.6 m/s
      Power of Motor: 22 kw

      3.CEMENT SYSTEM (OPTIONAL)
      3.1 Cement silo: 4 units
      Capacity: 100t×4=400t
      Silo Diameter: Φ3000
      3.2 Cement Screw Feeder: 4 units
      Diameter: Φ273mm
      Length: 9m

      4. ADDITIVE SYSTEM (OPTIONAL)
      Additive silo Capacity: 1m3
      Pneumatic Valve: Φ50 mm
      Pump: 2×3kw
      5. WATER SYSTEM
      Motor Power: 7.5 kw
      Butterfly Valve: Φ150 mm
      Capacity: 150m3/h
      6. AIR SYSTEM
      Air Compressor: 1unit
      Power: 11 kw
      Pressure: 1.0 Mpa
      Air flew: 1.2m3/min
      7. WEIGHING SYSTEM
      7.1 Aggregate Weighing: 1unit
      Weighing Capacity: 5000kg
      Precision: ±1%
      7.2 Cement Weighing: 1 unit
      Weighing Capacity: 1200kg
      Precision: ±1%
      7.3 Water Weighing: 1 unit
      Weighing Capacity: 400 kg
      Precision: ±1%
      7.4 Additive Weighing: 1 unit
      Weighing Capacity: 50 kg
      Precision: ±1%
      8. CONTROL SYSTEM
      PLC command and control operation.
      Main electrical components: SCHNEIDER or SIMENSE
      17’’ colorful computer
      Manuel and Auto Control is freely changeable .
